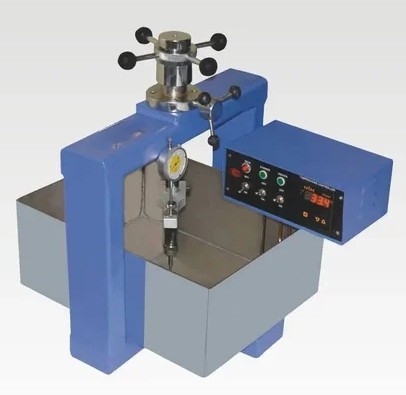

Hardness Tester Mastic Asphalt

Hardness Tester Mastic Asphalt

Mastic asphalt is a dense, impermeable mixture of asphalt binder and fine aggregates, commonly used in flooring, waterproofing, bridge decks, and road surfaces due to its durability and workability. Testing its hardness is essential for quality control, ensuring it meets performance standards for consistency and resistance to deformation under load. The hardness number quantifies the material’s resistance to penetration, which is critical for applications where the asphalt must withstand traffic or environmental stresses.

Standard Following

  • IS 1195-1968

Key Features

FEATURE

DISCRIPTION

LOAD

31.7 kg (fixed weight)

PIN DIAMETER

6.35 mm (flat-ended steel rod)

TEMPERATURE

Control Thermostat-controlled water bath (35°C ± 0.5°C); immersion heater

MEASUREMENT

Dial gauge (0.01 mm resolution); some digital variants available

Construction

Internally insulated cabinet; stainless steel components for durability

ACCESSORIES

Indenter pin, loading weights, sample holder, thermometer



Applications And Importance

  • Road Construction: Ensures mastic asphalt’s workability for impermeable layers in highways or runways.
  • Building Materials: Verifies hardness for flooring to prevent cracking or indentation.
  • Quality Control: Helps comply with project specs, reducing failures in waterproofing or load-bearing uses.
