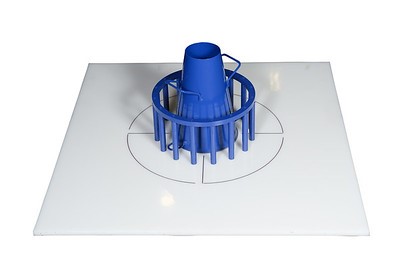

J-Ring Test

The J-Ring test is a standardized method used in civil engineering and materials science to evaluate the passing ability and stability of self-consolidating concrete (SCC), also known as self-compacting concrete. SCC is a highly flow able type of concrete designed to fill formwork and encircle reinforcement bars without the need for vibration or mechanical compaction. This test is particularly important for ensuring the concrete can navigate around obstacles like rebar in complex structures, preventing blockages or segregation.

Standard Following

  • ASTM C1621

    BE 69-01

    Base plate

    1000mm X 1000mm

    BE 69-02

    Slump cone

    100mm ID at a top X 200mm at a bottom X 300mm height

    BE 69-03

    straight rod

    straight rod of at least one flat side with a flexure less than 1 mm
