Marshall stability test

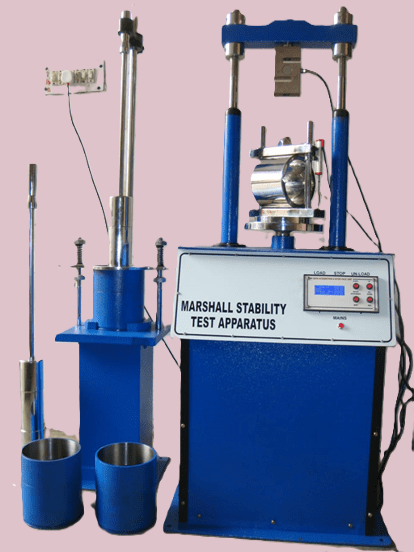

The Marshall Stability Test, conducted using the Marshall Apparatus, is the most widely used method by highway departments, contractors, engineers, testing laboratories, and governmental agencies to evaluate the strength and quality of bituminous paving mixtures. This test measures the resistance to plastic flow of cylindrical specimens of hot mix asphalt (containing asphalt or tar and aggregate up to 25.4 mm in size) when loaded on their lateral surface. It helps determine the mixture’s stability (maximum load it can withstand) and flow (deformation under load), ensuring the asphalt mix is suitable for road construction and can withstand traffic loads without excessive deformation
Standard Following
EN 12697-34, 12697-23, 12697-12 (Method A);
ASTM D1559, D5581, D 6927, D 6931;
AASHTO T245
The Device Operates On a Spring-Reaction Principle
MODEL | COMPONENT | DETAILS |
BE 83-01-A | Marshall Load Frame | Capacity 50 kn both are used normal and modified (single speed 50.8mm/min) |
BE 83-01-B | Marshall Load Frame | Capacity 50 kn both are used normal and modified (Two speed 50.8mm/min & 61mm/min) |
BE 83-02-A | Breaking Head Stability Mould Normal (fitting 4″) | with a dial gauge (having 25 mm travel and 0.01 mm least count), for flow measurement |
BE 83-02-B | Breaking Head Stability Mould Modified (fitting 6″) | with a dial gauge (having 25 mm travel and 0.01 mm least count), for flow measurement |
BE 83-03-A | Compaction Mould with base plate, 4-inch (101.6 mm) diameter x 2.5-inch (63.5 mm) height | Steel, cylindrical (3 nos) |
BE 83-03-B | Compaction Mould with base plate, 6-inch (152.4 mm) diameter x 3.75-inch (95 mm) height | Steel, cylindrical (3 nos) |
BE 83-04-A | Compaction Pedestal NORMAL MARSHALL | Manual Operation, comprising a Steel Plate capped on a wooden post. A Mould Clamp is fitted to the top of the plate |
BE 83-04-B | Compaction Pedestal MODIFIED MARSHALL | Manual Operation, comprising a Steel Plate capped on a wooden post. A Mould Clamp is fitted to the top of the plate |
BE 83-05-B | Compaction Hammer Normal Marshall | weight 4.5 kg with a free fall of 457 mm (2 Nos) |
BE 83-05-B | Compaction Hammer Modified Marshall | weight 10.21 kg with a free fall of 457 mm (2 Nos) |
BE 83-06-A | Load Transfer Bar Normal | (4-inch/101.6 mm) |
BE 83-06-B | Load Transfer Bar Modified | (6-inch/152.4 mm) |
BE 83-06 | Proving Ring (for Manual) | 50 kN |
BE 83-07 | Dial Gauge (for Manual) | 25 mm and 0.01 mm |
BE 83-07 | Load Cell (for Digital) | 50 kN |
BE 83-08 | LVDT Used for Digital | 25 mm and 0.01mm least count |
BE 83-09 | Digital Display | Used for Digital machine |
BE 83-10 | Software | All data come to pc see graph and data saved |
