Plastic Limit
Short Discription :
Plastic limit (PL) is the moisture content at which a fine-grained soil cannot be remolded without cracking. The plastic limit test requires repeated rolling of a soil sample into a thread until it reaches a point where it crumbles.
Plastic limit (PL) along with shrinkage limit (SL) and liquid limit (LL) comprise the Atterberg limits.
The PL is expressed as a percentage of the weight of the oven-dry soil, at the boundary of plastic and semi-solid consistency. It is the moisture content at which the rolled soil will begin to crumble when rolled into a thread 3mm or 1/8th inch in diameter.
Standard Following :
2720 (Part 5)-1985
Brochure:
DESCRIPTION
FEATURES
VIDEO
DESCRIPTION

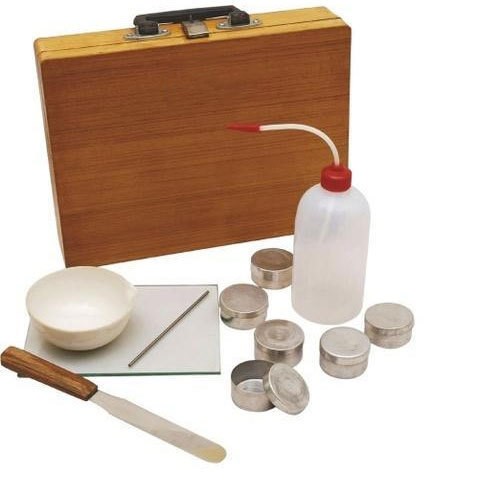

| BE 06-01 | Ground Glass Plate | The ground glass plate having 30 cm (12 in.) sides and is square in shape with a thickness of 1 cm |
| BE 06-02 | Spatula or a Pill knife | Consists of a blade of about 2cm width and 10 to 13 cm long. |
| BE 06-03 | A metallic rod | a diameter of 3.2mm and 100mm long. |
| BE 06-04 | Containers | Moisture Containers |
