Relative Density

Short Discription :

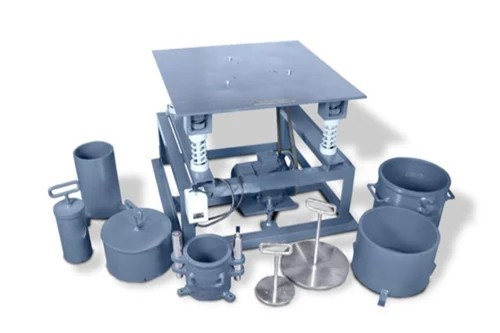

The apparatus measures the relative density of cohesion less, free-draining soils, suitable for soils with up to 12% particles passing a No. 200 (75µm) sieve, which don’t respond well to standard compaction tests. It uses vibratory compaction for maximum density and pouring for minimum density. The set includes a vibrating table.

Standard Following :

ASTM D4253, D4254. IS 2720 (Part 14)

Vibrating Table :

A steel table featuring a cushioned, vibrating steel platform, designed to operate at around 3,600 vibrations per minute when loaded with 115 kg. It is built to function on a 415 V, 50 Hz, three-phase AC power supply.

Vibrating Table :

Cylindrical Metal Unit Weight Mould :

Cylindrical Mould of 3000 cm3 capacity complete with guide sleeves and clamp, assembly surcharge weight with base plate and handle is equivalent to 140 gm/cm2.

Cylindrical Metal Unit Weight Mould :

Cylindrical Mould of 15000 cm3 capacity complete with guide sleeves and clamp, assembly surcharge weight with base plate and handle is equivalent to 140 gm/cm2

Dial Gauge Holder :

Dial Gauge holder

Dial Gauge :

Dial Gauge 0.01mm x 50mm with travel with extension piece

Calibration bar :

Calibration bar 75mm x 300mm x 3mm ‑ 1 Set
