SIEVE ANALYSIS & MOTORISED SIEVE SHAKER
Short Discription :
The description outlines the importance of soil particle size analysis in engineering, aiding in applications like frost action assessment, filter design, grouting material selection, and concrete mix design. Coarse soils (gravel and sand) are analyzed using sieving, while finer soils require sedimentation procedures. For mixed soils, both methods are combined. BALAJI offers equipment for these analyses, though specific equipment details are not provided.
Standard Following :
IS 2720 (Part 4), ASTM D 422, AASHTO T 88, BS 1377
Brochure:
| BE 22-01 | Sieves, | GI Frame of 450 mm diameter |
| BE 22-02 | Sieves, | GI Frame of 300 mm diameter |
| BE 22-03 | Sieves, | Brass Frame of 200 mm diameter |
| BE 22-04 | Sieve Shaker | Single type |
| BE 22-04-1 | Sieve Shaker | Universal type (200,300,450 mm) |

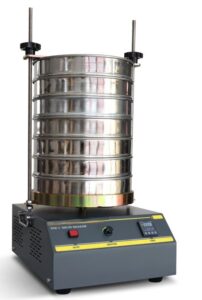

Electrically operated mechanical Sieve Shakers streamline dry sieving, offering a standardized, efficient process that minimizes errors compared to manual sieving. With over 40 years of design improvements, these shakers are compact, lightweight, and bench-mountable, eliminating the need for a concrete foundation. They feature reduced noise levels and a digital timer adjustable from 0-99 minutes.
Widely used in industries like soil testing, ores, refractories, aggregates, pigments, coal, cement, roofing materials, plastics, and pharmaceuticals, they can handle up to 8 sieves. Powered by a ½ HP geared motor, the shaker combines gyratory and tapping motions, with the table inclined from the vertical axis and direction changing clockwise. They operate on 220 V, single-phase AC.
Its shaker’s two types, one type is single size fixed sieve and second type universal type means 200,300,450 mm fixed sieve.

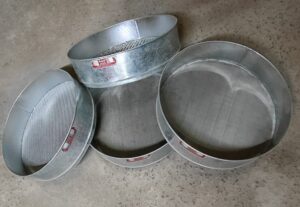

| SIZE IN MM | BE 22-01 (450 MM) | BE 22-02 (300 MM) |
| 125 | BE 22-01-A | BE 22-02-A |
| 106 | BE 22-01-B | BE 22-02-B |
| 90 | BE 22-01-C | BE 22-02-C |
| 75 | BE 22-01-D | BE 22-02-D |
| 63 | BE 22-01-E | BE 22-02-E |
| 53 | BE 22-01-F | BE 22-02-F |
| 45 | BE 22-01-G | BE 22-02-G |
| 37.5 | BE 22-01-H | BE 22-02-H |
| 31.5 | BE 22-01-I | BE 22-02-I |
| 26.5 | BE 22-01-J | BE 22-02-J |
| 22.4 | BE 22-01-K | BE 22-02-K |
| 19 | BE 22-01-L | BE 22-02-L |
| 16 | BE 22-01-M | BE 22-02-M |
| 13.2 | BE 22-01-N | BE 22-02-N |
| 11.2 | BE 22-01-O | BE 22-02-O |
| 9.5 | BE 22-01-P | BE 22-02-P |
| 8.0 | BE 22-01-Q | BE 22-02-Q |
| 6.3 | BE 22-01-R | BE 22-02-R |
| 5.0 | BE 22-01-S | BE 22-02-S |
| 4.75 | BE 22-01-T | BE 22-02-T |
| Pan & Cover | BE 22-01-U | BE 22-02-U |

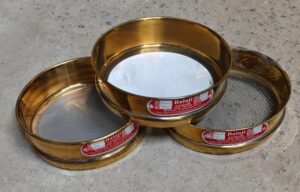

| BRASS SIEVE SIZE | BE 22-03 (200 MM) |
| 5.60 MM | BE 22-03-A |
| 4.75 MM | BE 22-03-B |
| 4.0 MM | BE 22-03-C |
| 3.35 MM | BE 22-03-D |
| 2.80 MM | BE 22-03-E |
| 2.36 MM | BE 22-03-F |
| 2.0 MM | BE 22-03-G |
| 1.70 MM | BE 22-03-H |
| 1.40 MM | BE 22-03-I |
| 1.18 MM | BE 22-03-J |
| 1.0 MM | BE 22-03-K |
| 850 micron | BE 22-03-L |
| 710 micron | BE 22-03-M |
| 600 micron | BE 22-03-N |
| 500 micron | BE 22-03-O |
| 425 micron | BE 22-03-P |
| 355 micron | BE 22-03-Q |
| 300 micron | BE 22-03-R |
| 250 micron | BE 22-03-S |
| 212 micron | BE 22-03-T |
| 180 micron | BE 22-03-U |
| 150 micron | BE 22-03-V |
| 125 micron | BE 22-03-W |
| 106 micron | BE 22-03-X |
| 90 micron | BE 22-03-Y |
| 75 micron | BE 22-03-Z |
| 63 micron | BE 22-03-AA |
| 53 micron | BE 22-03-AB |
| 45 micron | BE 22-03-AC |
| 38 micron | BE 22-03-AD |
| PAN & COVER | BE 22-03-AE |
